功能說明：

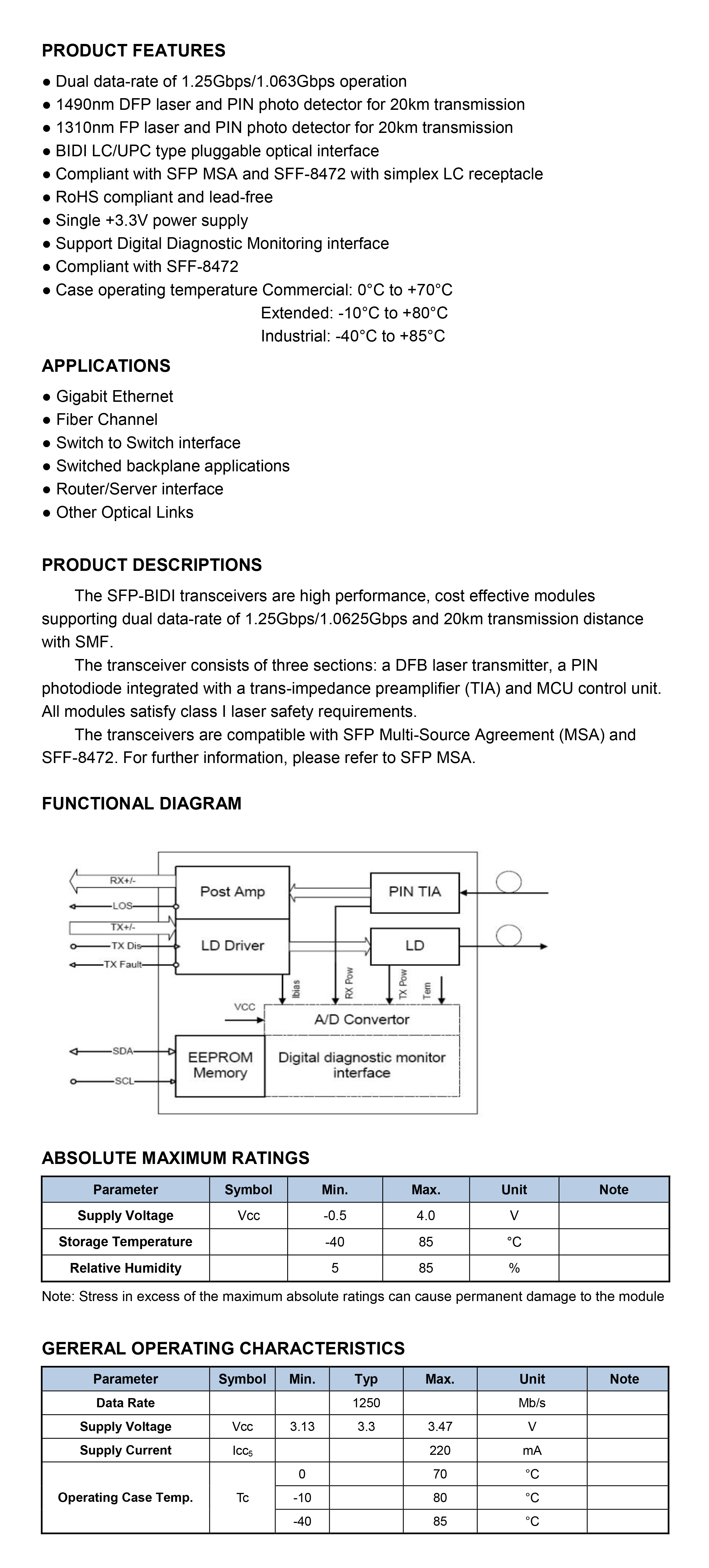

• The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
  The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

商品特點：

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1490nm DFP laser and PIN photo detector for 20km transmission
• 1310nm FP laser and PIN photo detector for 20km transmission
• BIDI LC/UPC type pluggable optical interface
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• RoHS compliant and lead-free
• Single +3.3V power supply
• Support Digital Diagnostic Monitoring interface
• Compliant with SFF-8472
• Case operating temperature
• Commercial: 0°C to +70°C
• Extended: -10°C to +80°C
• Industrial: -40°C to +85°C

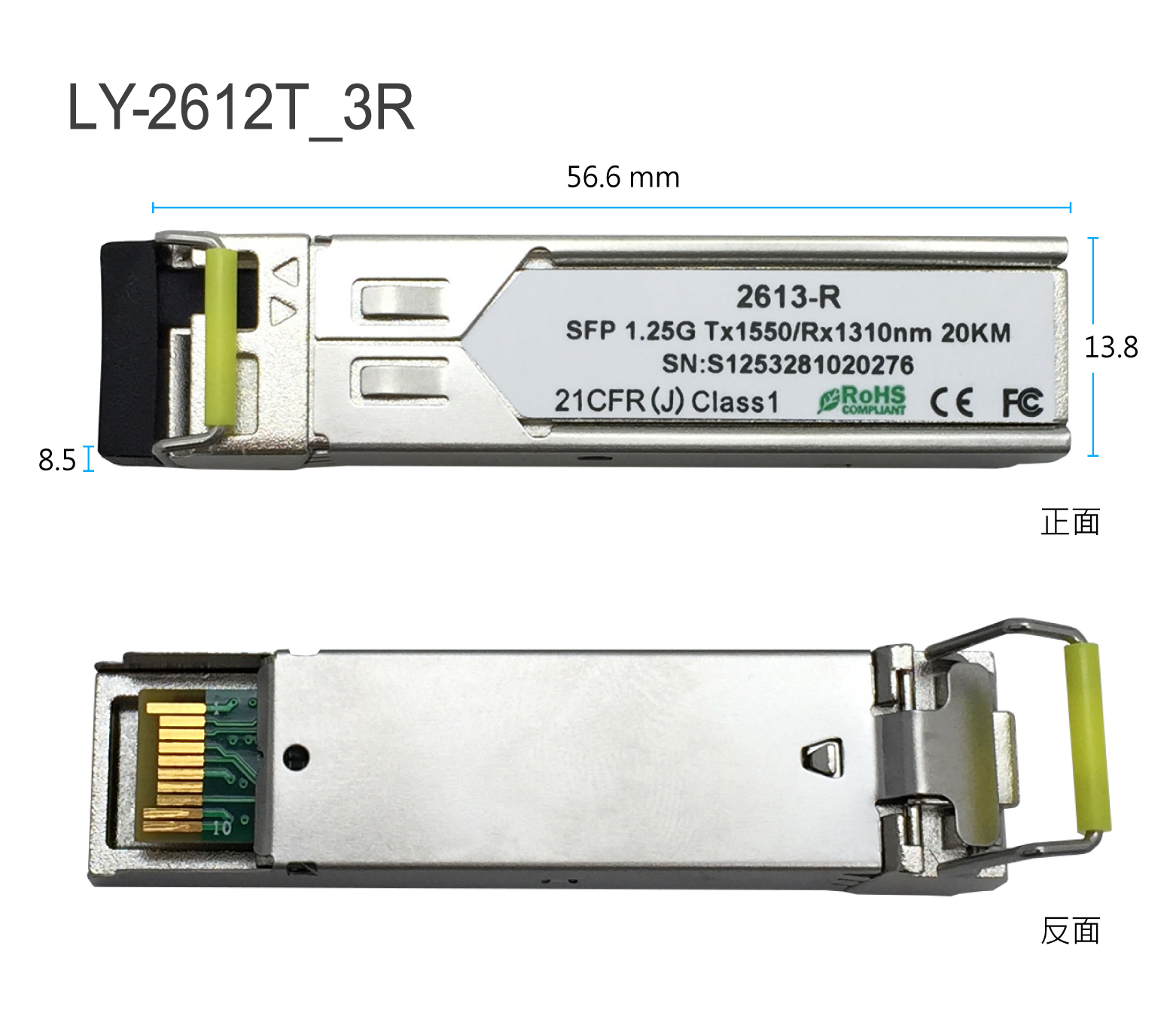

商品尺寸：
