Image Device

Sony Exmor™ 2.41 Mega-pixel image sensor, 1/2.8“

Effective Pixels

1920x1080 pixels

Lens

4.2mm

Mechanical ICR

Yes

IR LED

24pcs IR LED
Support auto/ schedule/ manual mode for IR LED on/off

Video

Video Encoder

H.264 and MJPEG simultaneously

Video Profile

Dual streaming

Wide Dynamic Range

True WDR (more than 100 dB)

Frame Rate

Up to 60fps(NTSC)/ 50fps(PAL) for 2M 60fps mode
Up to 30fps(NTSC)/ 25fps(PAL) for 2M WDR mode

Exposure Control

Auto / Auto Indoor / Manual Exposure
(Manual mode : 1/2~1/10,000 seconds)
Photometry Method : Average / Center / Spot / BLC / FLC

Image Setting

AE, AWB
3D Noise reduction
True WDR
Exposure value, Color, Hue , Brightness, Contrast, Sharpness,
Mirror/Flip
DIS
Privacy masks

On Screen Display

Text, time and date overlay
Editable OSD (bitmap format)

Area of Interest

Higher quality in AOI area

Streaming

Simultaneously dual streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)

Audio

Audio Encoder

RTSP: G.711 64kbps, G.726 32kbps, AAC (option, by request)

Audio Streaming

One-way or two-way

Microphone

External microphone

Audio Output

Adjustable audio output gain

Network

Supported Protocols

IPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, SNMP

Security

Password protection, IP address filtering, HTTPS encrypted data transmission, user access log

Users

20 simultaneous unicast users

Ethernet

10/100/1000M auto negotiation

System Integration

SDK

ONVIF
Open API for software integration

Event Detection

External input (DI)
Object Detection
Camera tampering
Audio detection
Face Detection
Cross Line Detection

Object Detection

Detection with Entrance , Desertion or Theft options

Audio Detection

Audio level 0-100

Camera Tampering

Camera dis-focus / move direction / mask

Cross Line

User defined two cross line , and user defined entrance direction

Alarm Events

Video file upload via FTP server
Video file upload via email server
Video file upload via Samba to NAS
Notification to HTTP, and TCP server
External output activation (DO)
Audio alerting output
Push notify to smart phone apps
NFR (Network Failure Recovery)

Video Buffer

Pre- and post- alarm buffering

General

RAM

384MB

ROM

256MB

Power Supply

12V DC external power adapter or AC24V

PoE

IEEE 802.3af class 3

Power Consumption

8W (12V DC in)

Connectors

RJ-45 10Base-T/100Base-TX/1000Base-T
12VDC power jack
AC24V Terminal (option)
1 sensor input (DI)
1 alarm output (DO)
RS485
Audio out
External MIC input
Factory default reset

Indication LED

Green and orange LEDs

Operating Temperature

0°C to 50°C (32°F to 104°F)

Construction

IP66 weather proof

Certification

FCC certificated
CE Class A certificated

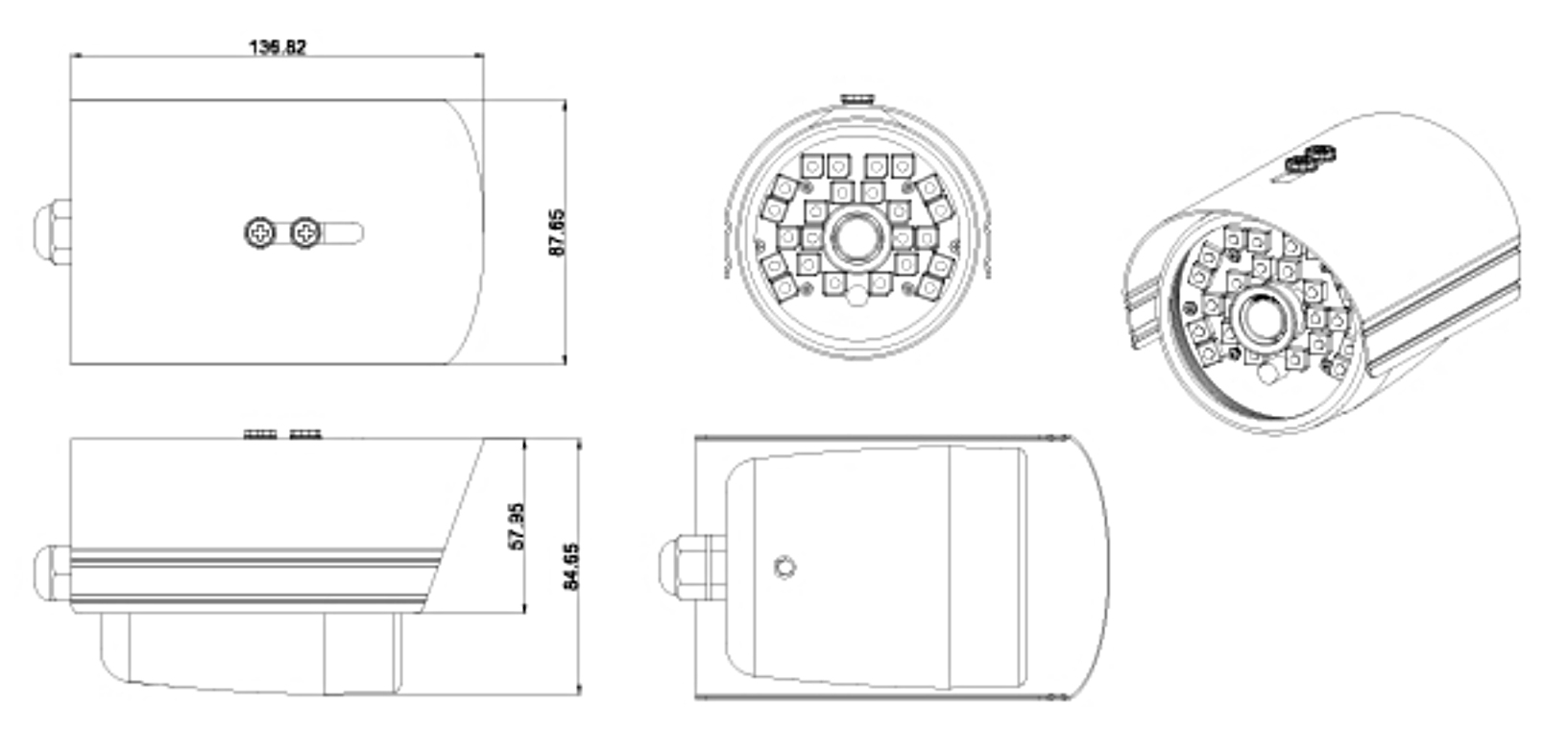

Dimension

135.82 x Φ87.65 mm

Viewing System

OS

Windows XP, 7, 8 , 10

Browser

IE 9.0 or later, Firefox 2.0 or later, Safari , Google Chrome

Video Player

VLC, Quick Time, Real Player, Core Player

Software

Search & Installation

IP Wizard II

Easy DDNS

DIPS

Bundled NVR Program

64ch. SecuGuard™
* 64ch. multi-channel supports Tri-decoder
* 16ch. video playback (simultaneously)
* Smart & scrollable digital zoom. Snapshot and edit
* Motion, DI, Scheduler recording
* Fast rewind and forward (MPEG4, H.264, MJPEG rewind)
* 32x24 motion detection grids
* Smart search (by time, by motion)
* E-MAP
* Event schedule setting
* Remote service
* Camera tampering

Bundle Mobile Phone APPS

SecuAngel (Android) and iVanguard (iOS)

本型錄中產品的配備及規格依實際出貨為準，配備及規格若有變更將不另行通知。
