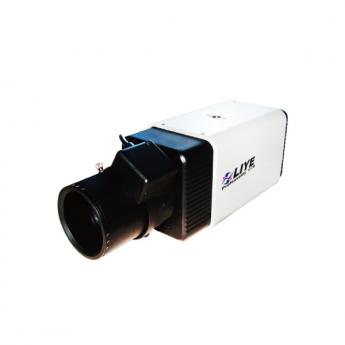

Camera

Image Device

Sony Exmor. 2.41 Mega-pixel image sensor, 1/2.8“ size

Effective Pixels

1920x1080

Iris

Support DC drive Iris or P-iris lens

Lens Mount

C or CS mount

Focus

Auto Back Focus

ICR type

Mechanical

Video

Video Encoder

H.264 and MJPEG simultaneously

Video Profile

Dual stream for WDR mode (Resolution Adjustable)

Wide Dynamic Range

More than 100dB

Frame Rate

Up to 60fps for 60fps mode
Up to 30fps for WDR mode

Exposure Control

Auto / Auto Indoor / Manual Exposure
(Manual mode : 1/2~1/10,000 seconds)
Photometry Method : Average / Center / Spot / BLC / FLC

Image Setting

AE, AWB
3D Noise reduction
True WDR
Exposure value, Color, Hue , Brightness, Contrast, Sharpness,
Mirror/Flip
DIS
Privacy masks
Pixel count

On Screen Display

Text, time and date overlay
Editable OSD (bitmap format)

Area of Interest

Higher quality in AOI area

Streaming

Simultaneously dual streaming
Streaming over UDP, TCP, HTTP, or HTTPS
M-JPEG streaming over HTTP (server push)
Controllable frame rate and bandwidth
Constant and variable bit rate (H.264)

Audio

Audio Encoder

RTSP: G.711 64kbps, G.726 32kbps, AAC (optional, by request)

Audio Streaming

One-way or two-way

Microphone

Built-in and external microphone

Audio Output

Adjustable audio output gain

Network

Supported Protocols

IPv6, IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP, SNMP , QoS

Security

Password protection, IP address filtering, HTTPS encrypted data
transmission, user access log

Users

20 simultaneous unicast users

Ethernet

10/100/1000M auto negotiation

System Integration

SDK

ONVIF
Open API for software integration

Event Detection

External input (DI)

Audio Detection

Audio level 0-100

Camera Tampering

Camera dis-focus / move direction / mask

Cross Line

User defined two cross line , and user defined entrance direction

Alarm Events

* File upload via FTP or email
* File upload via Samba to NAS
* Notification via email, HTTP, and TCP

Video Buffer

Pre- and post- alarm buffering

General

RAM

384MB

ROM

256MB

Power Supply

12V DC external power adapter or AC24V

PoE

IEEE 802.3af class 3

Power Consumption

Max. 8W (12V DC in)

Connectors

RJ-45 10Base-T/100Base-TX/1000Base-T
12VDC power jack
AC24V Terminal (option)
1 alarm input and 1 output
RS485
Audio out
External MIC input
Factory default reset
mSD card

Indication LED

Green and orange LEDs

Operating Temperature

0°C to 40°C

Operating Humidity

20% ~ 80% (non-condensing)

Viewing System

OS

Windows® XP, Vista, 7, 8 , 8.1

Browser

IE 7.0 or later, Firefox 2.0 or later, Safari , Google Chrome

Video Player

VLC, Quick Time, Real Player, Core Player

Software

Search & Installation

IP Wizard II

Easy DDNS

DIPS™

Bundled NVR Program

64ch. SecuGuard™
* 64ch. multi-channel supports Tri-decoder
* 16ch. video playback (simultaneously)
* Smart & scrollable digital zoom. Snapshot and edit
* Motion, DI, Scheduler recording
* Fast rewind and forward (MPEG4, H.264, MJPEG rewind)
* 32x24 motion detection grids
* Smart search (by time, by motion)
* E-MAP
* Event schedule setting
* Remote service
* Camera tampering

Bundle Mobile Phone APPS

SecuAngel (Android) and iVanguard (iOS)

本型錄中產品的配備及規格依實際出貨為準，配備及規格若有變更將不另行通知。
